`How-to` Guide: Release changes from 1 Branch - V2

Git Ops Framework facilitating (semi) automated flows:

Publish my branch

Local Environment - Setup

Expression	Description	Example	Idea
`function git-tag { git tag -f "$1" && git push origin -f "$1" }`	Tag HEAD, local and remote	`git-tag auto-release`	Facilitates Git-Ops, given input tag
`function parse-version { grep -E -o '^version\s=\s\".*\"' pyproject.toml \\| cut -d'"' -f2; }`	Parse Version from pyproject.toml	`parse-version`	Query Single Source of Truth

Github - setup

There multiple phases of the porcess where we want to achieve behaviour such as:

Merge Branch A to Branch B, after its corresponding PR's Required Checks Pass.

We leverage Github Branch Protection Rules, while timely enabling Auto Merge on github PRs, to achieve such behaviour.

We expect Protection Rules to be in place for below Branches:

master
release-train
test-distro
test-docs
test-distro-docs

How-to: enable `Auto Merge` for your github repo

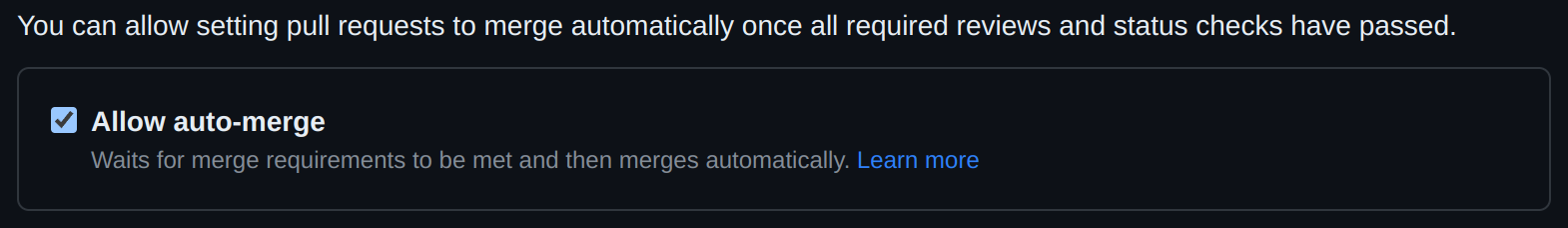

Navigate to the General Repo settings on github.com Go to https://github.com/boromir674/cookiecutter-python-package/settings and enable checkbox Allow auto-merge, as shown in the sample github screenshot, below:

Publish my Branch - Flow

Here you can find the definition of Publish my Branch Flow and How-to guides.

Definition of `Publish my Branch` Flow

The Publish my Branch Flow is a process, where the User changes are shipped / released to production.

Assumptions:

the User / Developer made all their changes on a User Br branch
there is a dedicated main / master branch, for tagged production commits (public API)

Thus, a starting git state should look like below:

%%{init: { 'logLevel': 'debug', 'gitGraph': {'showBranches': true, 'showCommitLabel':true,'mainBranchName': 'main / master'}} }%%
    gitGraph
        commit id: "[NEW] Gen 1.2.0" type: HIGHLIGHT tag: "v1.2.0"
        commit id: "[NEW] Gen 1.2.1" type: HIGHLIGHT tag: "v1.2.1"
        commit id: "[NEW] Gen 1.3.0" type: HIGHLIGHT tag: "v1.3.0"
        branch "User Br"
        commit
        commit id: "new feat"

How-to: initiate the `Publish my Branch` Flow

Assuming Github and Dev Environment, are properly setup.

Run in terminal

git push
git-tag board-request

This should Automatically Trigger the pr-to-boarding Workflow, which:

Opens PR from User Branch to boarding-auto
Labels PR, based on files changed
Labels PR, for Auto Merge into Train
Merges PR User Branch --> boarding-auto
Opens PR boarding-auto --> release-train, and merge if PR OK

Opens PR release-train --> release, and merge if PR OK

%%{init: { 'logLevel': 'debug', 'theme': 'default', 'gitGraph': {'rotateCommitLabel': false, 'showBranches': true, 'showCommitLabel':true, 'mainBranchName': 'main / master'}} }%%
    gitGraph
        commit id: "1.2.0" type: HIGHLIGHT tag: "v1.2.0"
        commit id: "1.2.1" type: HIGHLIGHT tag: "v1.2.1"
        commit id: "1.3.0" type: HIGHLIGHT tag: "v1.3.0"

        branch release
        branch release-train
        branch "Protected Branch"
        branch boarding-auto
        branch "User Br"

        commit
        commit id: "new feat"

        checkout boarding-auto
        merge "User Br" id: "Classify Type of Changes"

        checkout "Protected Branch"
        merge "boarding-auto" id: "Accept User changes"

        checkout release-train
        merge "Protected Branch" id: "Integrate into Train"

        checkout release
        merge release-train id: "Start Release"

So now, the release branch is updated on the remote,

Now, sync your release local branch, by running:

git fetch && (git checkout release || git branch --track release origin/release) && git pull origin release

Run interactive script

NOTE: This assumes a Prod Release ie from 1.2.3 to 1.2.4 and NOT a Dev, ie 1.2.4-dev

./scripts/auto-release.sh

This should:

Ask for new Release Sem Ver
Ask user to Update Changelog themselves
Trigger Distro Release CI Tests, with Job Matrix

PR 'release' --> 'master', and merge if PR OK

%%{init: { 'logLevel': 'debug', 'theme': 'default', 'gitGraph': {'showBranches': true, 'showCommitLabel':true, 'mainBranchName': 'main / master'}} }%%
    gitGraph
        commit id: "1.2.0" type: HIGHLIGHT tag: "v1.2.0"
        commit id: "1.2.1" type: HIGHLIGHT tag: "v1.2.1"
        commit id: "1.3.0" type: HIGHLIGHT tag: "v1.3.0"

        branch release
        branch release-train
        branch "Protected Branch"
        branch boarding-auto
        branch "User Br"

        commit
        commit id: "new feat"

        checkout boarding-auto
        merge "User Br" id: "Classify Changes" type: HIGHLIGHT

        checkout "Protected Branch"
        merge "boarding-auto" id: "Accept User changes" type: HIGHLIGHT

        checkout release-train
        merge "Protected Branch" id: "Integration Tests" type: HIGHLIGHT

        checkout release
        merge release-train id: "Start Release" type: HIGHLIGHT

        commit id: "Sem Ver PROD"
        commit id: "Changelog update"
        commit id: "Sem Ver RC" tag: "v1.4.0-rc" type: HIGHLIGHT
        commit id: "Revert HEAD" type: REVERSE

        checkout "main / master"
        merge release id: "[NEW] v1.4.0" type: HIGHLIGHT tag: "v1.4.0"

Code Review PR on Github

Go to PRs to 'master':
https://github.com/boromir674/cookiecutter-python-package/pulls?q=is%3Apr+is%3Aopen+base%3Amaster

Revert RC Sem Ver commit

export GIT_BR='release'
git fetch

# if local release does not exist, track remote with a new local release
git branch --track release "origin/${GIT_BR}" || echo "Local '${GIT_BR}' branch already exists."

# if local release exists, ensure it tracks remote counterpart
git branch --set-upstream-to="origin/${GIT_BR}" "${GIT_BR}"

if [ $? -ne 0 ]; then
    echo "[ERROR] Remote ${GIT_BR} does not exists"
    echo "The assumption is that there is a PR 'release' --> 'master', requires a 'release' branch"
    echo "[FATAL] Exiting .."
else
    git checkout release
    git pull
    git revert HEAD
    git push
fi

Merge PR 'release' --> 'master'

Sample Commit
- Subject [NEW] Py Pkg Gen v2.0.0
- Body

--> !! DONE !! <--

Now, a new Release should be issued:

git checkout master && git pull && git push

function parse-version { grep -E -o '^version\s*=\s*\".*\"' pyproject.toml | cut -d'"' -f2; }

export tt="v$(parse-version)"

git tag -d "$tt"; git push origin -d "$tt"
git tag "$tt" && git push origin "$tt" && gh release create "$tt"

master branch
pypi
dockerhub
readthedocs

Clean Git with:

git checkout release && git rebase master && git push && git push origin --delete release-train
for bra in test-distro test-docs test-distro-docs boarding-auto; do git push origin -d "$bra"; done
